90-degree elbow
The company's main products are high, medium and low pressure carbon steel, alloy steel, stainless steel elbows, tees, reducers, various pipe joints, etc.; high, medium and low pressure medium frequency elbows, power plant piping, factory prefabricated elbows, etc. Products are widely used in petroleum, chemical, refining, electricity, heating and other pipeline projects.
Key words:
Classification:
Product Description

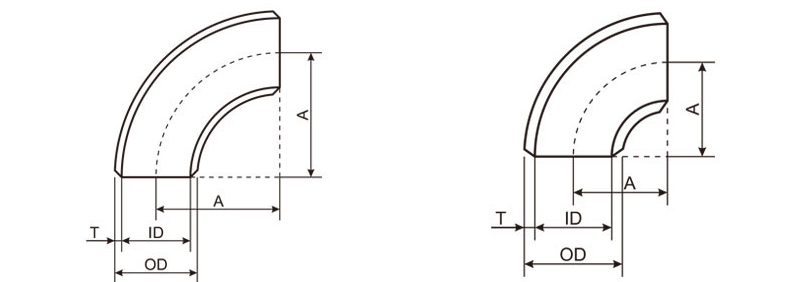

| Dimensions (NPS) |
Outer Diameter D |
Center to End Face | |||
| Long Radius Bend | Short Radius Bend | ||||
| 90 degrees A |
45 degrees B |
90 degrees A |
45 degrees B |
||
| 1/2 | 21.3 | 38.1 | 15.7 | -- | -- |
| 3/4 | 26.7 | 38.1 | 19.1 | -- | -- |
| 1 | 33.4 | 38.1 | 22.4 | 25.4 | -- |
| 1-1/4 | 42.2 | 47.8 | 25.4 | 31.8 | -- |
| 1-1/2 | 48.3 | 57.2 | 28.4 | 38.1 | -- |
| 2 | 60.3 | 76.2 | 35.1 | 50.8 | -- |
| 2-1/2 | 73.0 | 95.2 | 44.4 | 63.5 | -- |
| 3 | 88.9 | 114.3 | 50.8 | 76.2 | 31.6 |
| 3-1/2 | 101.6 | 133.4 | 57.2 | 88.9 | 36.8 |
| 4 | 114.3 | 152.4 | 63.5 | 101.6 | 42.1 |
| 5 | 141.3 | 190.5 | 79.2 | 127.0 | 52.6 |
| 6 | 168.3 | 228.6 | 95.2 | 152.4 | 63.4 |
| 8 | 219.1 | 304.8 | 127.0 | 203.2 | 84.2 |
| 10 | 273.1 | 381.0 | 158.8 | 254.0 | 105.2 |
| 12 | 323.9 | 457.2 | 190.5 | 304.8 | 126.3 |
| 14 | 355.6 | 533.4 | 222.2 | 355.6 | 147.3 |
| 16 | 406.4 | 609.6 | 254.0 | 406.4 | 168.3 |
| 18 | 457.2 | 685.8 | 285.8 | 457.2 | 189.4 |
| 20 | 508.0 | 762.0 | 317.5 | 508.0 | 210.4 |
| 22 | 558.8 | 838.2 | 342.9 | 558.8 | 231.5 |
| 24 | 609.6 | 914.4 | 381.0 | 609.6 | 252.5 |
| 26 | 660.4 | 990.6 | 406.4 | 660.4 | 273.5 |
| 28 | 711.2 | 1066.8 | 438.2 | 711.2 | 294.6 |
| 30 | 762.0 | 1143.0 | 469.9 | 762.0 | 315.6 |
| 32 | 812.8 | 1219.2 | 501.6 | 812.8 | 378.1 |
| 34 | 863.6 | 1295.4 | 533.4 | 863.6 | 357.7 |
| 36 | 914.4 | 1371.6 | 565.2 | 914.4 | 378.8 |
| 38 | 965.2 | 1447.8 | 599.9 | -- | -- |
| 40 | 1016.0 | 1524.0 | 632.0 | 1016.0 | 420.8 |
| 42 | 1066.8 | 1600.2 | 660.4 | 1066.8 | 441.9 |
| 44 | 1117.6 | 1676.4 | 695.5 | 1117.6 | 462.9 |
| 46 | 1168.4 | 1752.6 | 726.9 | -- | -- |
| 48 | 1219.2 | 1828.8 | 759.0 | 1219.2 | 505.0 |
| 52 | 1320.8 | -- | -- | 1320.8 | 547.1 |
| 54 | 1371.6 | 2057.4 | 852.2 | 1371.6 | 568.1 |
| 56 | 1422.4 | 2133.6 | 883.8 | 1422.4 | 589.2 |
| 60 | 1524.0 | 2286.0 | 946.9 | 1524.0 | 631.3 |
| 66 | 1676.4 | 2514.6 | 1041.6 | -- | -- |
| 68 | 1727.0 | 2591 | 1073 | 1727 | -- |
| 72 | 1829.0 | 2743 | 1137 | 1829 | -- |
| 76 | 1930.0 | 2896 | 1199 | 1930 | -- |
| 80 | 2032.0 | 3048 | 1263 | 2032 | -- |
The intermediate frequency machine includes 3 sets of 250kw and 500kw multifunctional pipe benders. The maximum pipe bending specification reaches the medium 1420 mmX55mm, and the maximum forming specification of the intermediate frequency push elbow is the medium 1020 mmx65mm, which is the larger forming diameter and wall thickness of the domestic pipe bending processing and push elbow.
